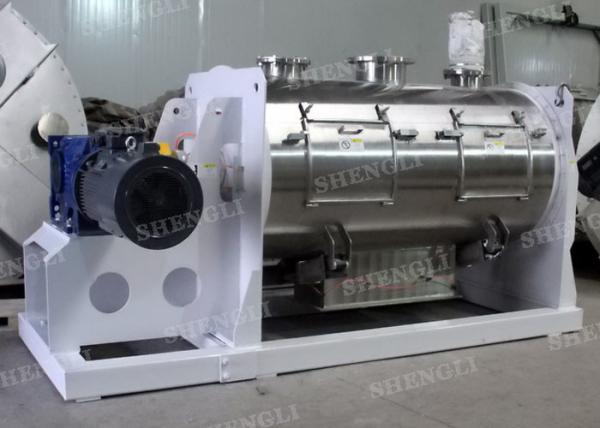

Convenient Installation Horizontal Paddle Mixer / Powder Mixer ISO CE
Introduction:
Plough mixer, powder plough share mixer, food powder mixing
equipment, high speed,ISO, CE is widely used as powder mixer, granule blender, and small liquid
additives in food blender, chemical blender, and construction
material blender.
It is particularly good at handling food additives, mortar,
fertilizing, sludge, plastic, and special building material.
The powerful shearing chopper makes it high efficiency, and good mixing result.
WORKING PRINCIPLE:
Plough shear mixer is a single shaft compulsory mixing equpments.
Several sets of plough shears are installed on the main shaft in
dislocation and continuously, which avoid the mixing dead zone in
structure. When operating material in mixer tank move following the
direction of the
continuous vortex centrifugal force generated by the continuously
blending plough shears, thus to achieve scattering, dispersing and
fast mixing of material.
Special material like fiber or some damp agglomerate material, high
speed chopper can be installed inside mixer tank to scatter,
dispense these materials with combination of plough shear mixing
agitator.
The high speed choppers are positioned at the barrel side downward
angle of 45 degrees of the plough shear mixer,
the chopper heads stretch into the barrel. During mixing materials
are driven to the effective range of the chopper, and sheared in
high speed by it
Data sheet
| specification | LDH-0.3 | LDH-0.5 | LDH-1 | LDH-2 | LDH-3 | LDH-4 | LDH-6 | LDH-8 | LDH-10 | LDH-15 |
| working capacity(m³) | 0.18 | 0.3 | 0.6 | 1.2 | 1.8 | 2.4 | 3.6 | 4.8 | 6 | 9 |
| working capacity (KG) | 200 | 300 | 600 | 1200 | 1800 | 2500 | 3600 | 5000 | 6000 | 9000 |
| speed (R/min) | 130 | 130 | 85 | 63 | 63 | 42 | 42 | 33 | 33 | 28 |
| power (KW) | 5.5 | 7.5 | 11 | 15 | 22 | 30 | 45 | 55 | 75 | 90 |
| weight | 550 | 800 | 1000 | 1800 | 2500 | 3500 | 4200 | 4800 | 5800 | 7000 |
| length | 2200 | 2700 | 3200 | 4100 | 4350 | 4700 | 5400 | 6500 | 5600 | 6000 |
| width | 900 | 980 | 1000 | 1250 | 1450 | 1500 | 1700 | 2200 | 2500 | 2800 |
| height | 900 | 1200 | 1350 | 1600 | 1800 | 1950 | 2300 | 2600 | 2900 | 3000 |
1. Flexible material selection
Material can be carbon steel, manganese steel, ss304, 316L and 321;
besides, different material can also be used between the part contact with the raw material and the parts don’t contact with the raw material.
Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer.
2. Reliable driven unit
Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor.
Options of gearbox: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer.
Motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection
3. High efficiency mixing unit
The plow heads in the plough shear mixer can be dismountable, which is convenient for replacement.
Wear-resistance treatment is done on the plow, making the plow more durable to the severe wear conditions.
Different type main shaft agitators can be equipped according to the properties of raw materials.
Chopper can be equipped according to the properties of raw
materials
Main shaft agitators: ordinary plough, saw-toothed plough, and
shaver-shaped paddle; High speed chopper: multiple-piece cross
blade, double-piece lotus blade.
4. Excellent discharging unit
Standard valve for horizontal plough shear mixer is pneumatic
planar flap valve. When close the valve, the planar flap match the
mixing barrel perfectly
this makes no mixing dead zone and better mixing effect. The drive types of valve are Manual, pneumatic, and electric.
Valves for option: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc
5. Powerful auxiliary components
Mixer is equipped with many auxiliary components, like steam coil
jacket, honeycomb pressure jacket, medium circulation jacket,hot water or steam or industrial oil can circulate int the jacketto realize the technical of drying, cooling and keeping warm purpose
sampling valve, high speed chopper, temperature sensor, weighing system, dust removal system etc..
Liquid filling system can be installed at the top cover, the different material of the atomized spray nozzle can realize the injecting of acid or alkali liquid, or water.
The tank and the agitator can be coated with other material like PE, PTFE, CARBIDE, etc. to realize the resistance of wear-out, acid/alkali, or explosion etc.
plough mixer, powder plough share mixer, food powder mixing equipment, high speed,ISO, CE
