Powder vacuum conveyor,vacuum feeders,pneumatic vacuum conveyor,vacuum conveyor for powder

Working Principle

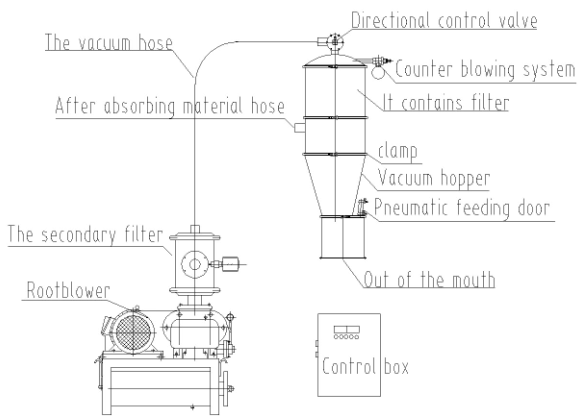

ZKS vacuum feeder unit is using whirlpool air pump extracting air. The inlet of absorption material tap and whole system is made to be in vacuum state. The powder grains of material are absorbed into the material tap with ambient air and formed to be the air flowing with material. Passing the absorption material tube, they arrive to the hopper. The air and materials are separated in it. The separated materials are sent to the receiving material device. The control center controls the “on/off” state of pneumatic triple valve for feeding or discharging the materials.

In the vacuum feeder unit the compressed air opposite blowing device is fitted. When discharging the materials every time, the compressed air pulse oppositely blows the filter. The powder attached on the surface of filter is blown off for ensuring normal absorbing material.

Shanghai Shengli Machinery Manufacture Co.,Ltd specializes in technology of mixing equipment and auxiliary. with more than 30 years of technical experience, we devotes ourselves to the research, design, manufacture, sales and service of mixing equipment and conveying equipment, to meet all kind of requirement formixing process system.

We have 6 main mixer products, they are ribbon mixer, ploughshear  mixer, paddle mixer, conical mixer, continuous mixer, liquid mixer,all these mixers are custom-made according to different kinds of material

Assisted by the high -tech modernized processing ways and serious production management, we guarantee high quality; provide first-class after-sale service. Our products have been sold to many provinces in China and exported to all over the world.

we go deeply mixing processing filed and related technology, devote to research different kinds of mixer, modify and perfect existing mixing system, and develop new-type mixer equipment. We will keep researching new technology, solving mixing problems, providing more suitable mixer, promoting upgrades, and creating maximum value for customers.
